Heavy Duty Stainless Steel Folding Table Support with Soft-Close Damper - EB-303-DA - 220 lbs Load Capacity - Perfect for Kitchen Islands, Workbenches, and Foldable Desks

Features

High quality heavy duty folding console with stainless steel damper with load capacity up to 100 kg

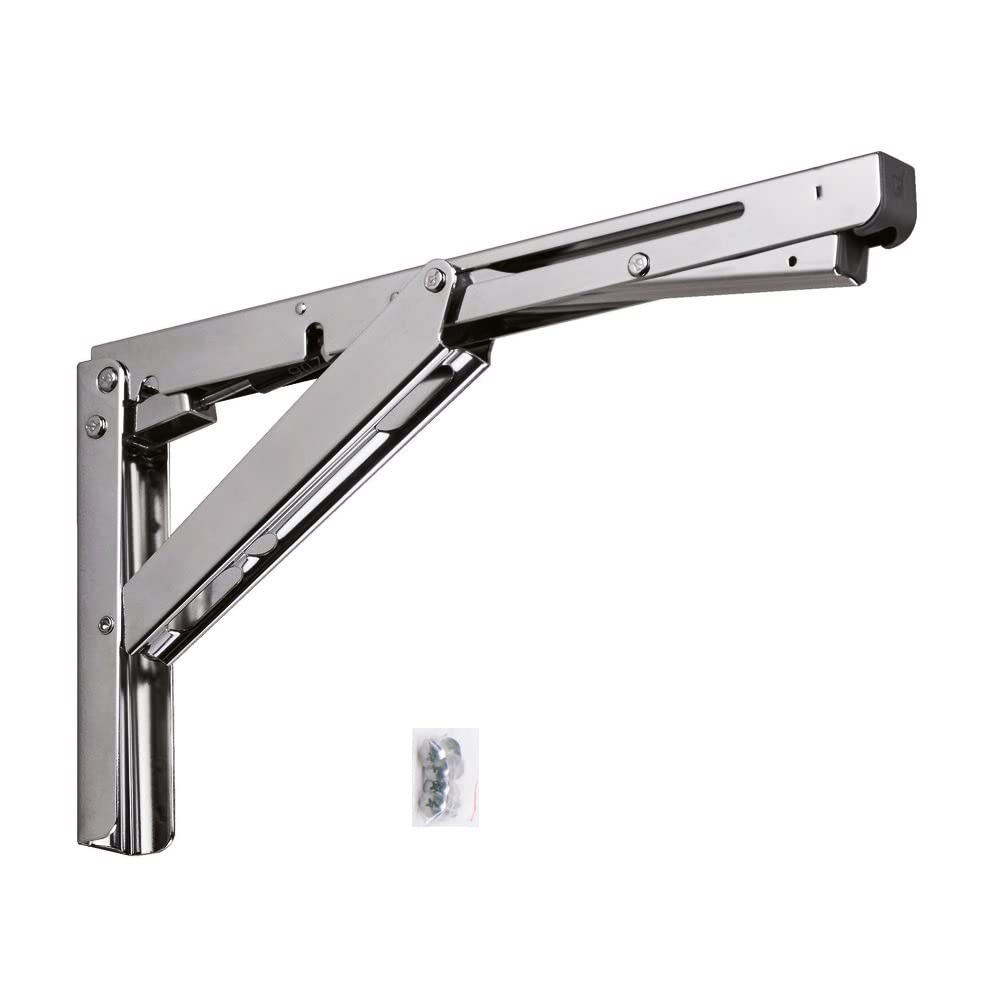

Package includes 1 x folding table support made of stainless steel and fixing screws. Material Made of high quality stainless steel SUS304 (AISI304, V2A). Surface electric polished stainless steel

These high-quality folding table supports made of solid stainless steel with soft-close cushioning are ideal for damp and harsh environments and can be used in many ways. The folding consoles can be used in homes, offices, restaurants, hotels, etc. They can also be used perfectly for the interior of motorhomes, caravans, boats, yachts and trains.

The flap supports are designed for tough use environments, but thanks to their classic industrial look, they are also perfect for modern interiors. These EB-303-DA folding table holders are also very suitable for use in the Tiny House or Micro Apartment to make space flexible as needed. A special feature of these folding angles is that flap support and flap hinge are combined in one fitting.

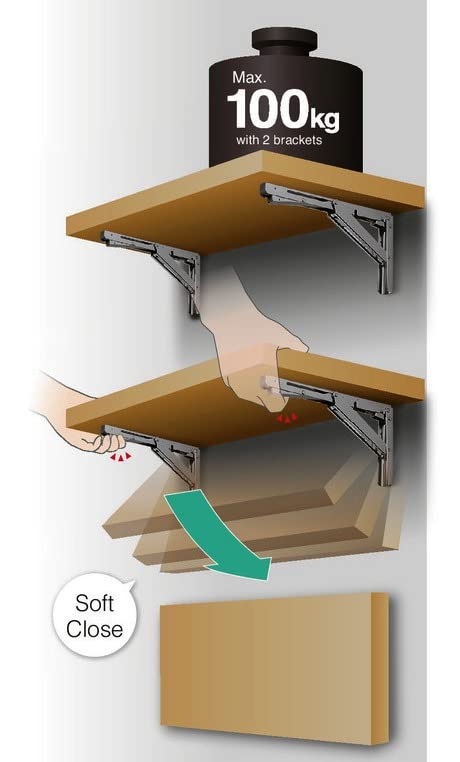

The built-in soft-close damper ensures that the flap closes gently. For lighter flaps, you can install a flap support without damper. When the flap is folded, it is locked in place by pressing on the surface if necessary. This means that the folding table in the caravan or boat remains in a closed position even while driving, does not wobble and produces no noise.

When the folding table holder is opened, it automatically locks in the upper position and can be loaded. To fold the folding table again, both levers must be operated on the left and right at the same time. This ensures that the flap support is not accidentally folded. The release lever of the folding angle is extra long to make gripping easier.

The folding brackets are made of corrosion-resistant stainless steel. The surfaces are elaborately processed, so that the fittings look very high quality.

The installation is done with the help of the screws provided. The maximum load can be achieved by distributing the load so that the centre of gravity is in the middle (see picture). If the centre of gravity of the flap is on the edge of the folding table holder, the load capacity is 75 kg.

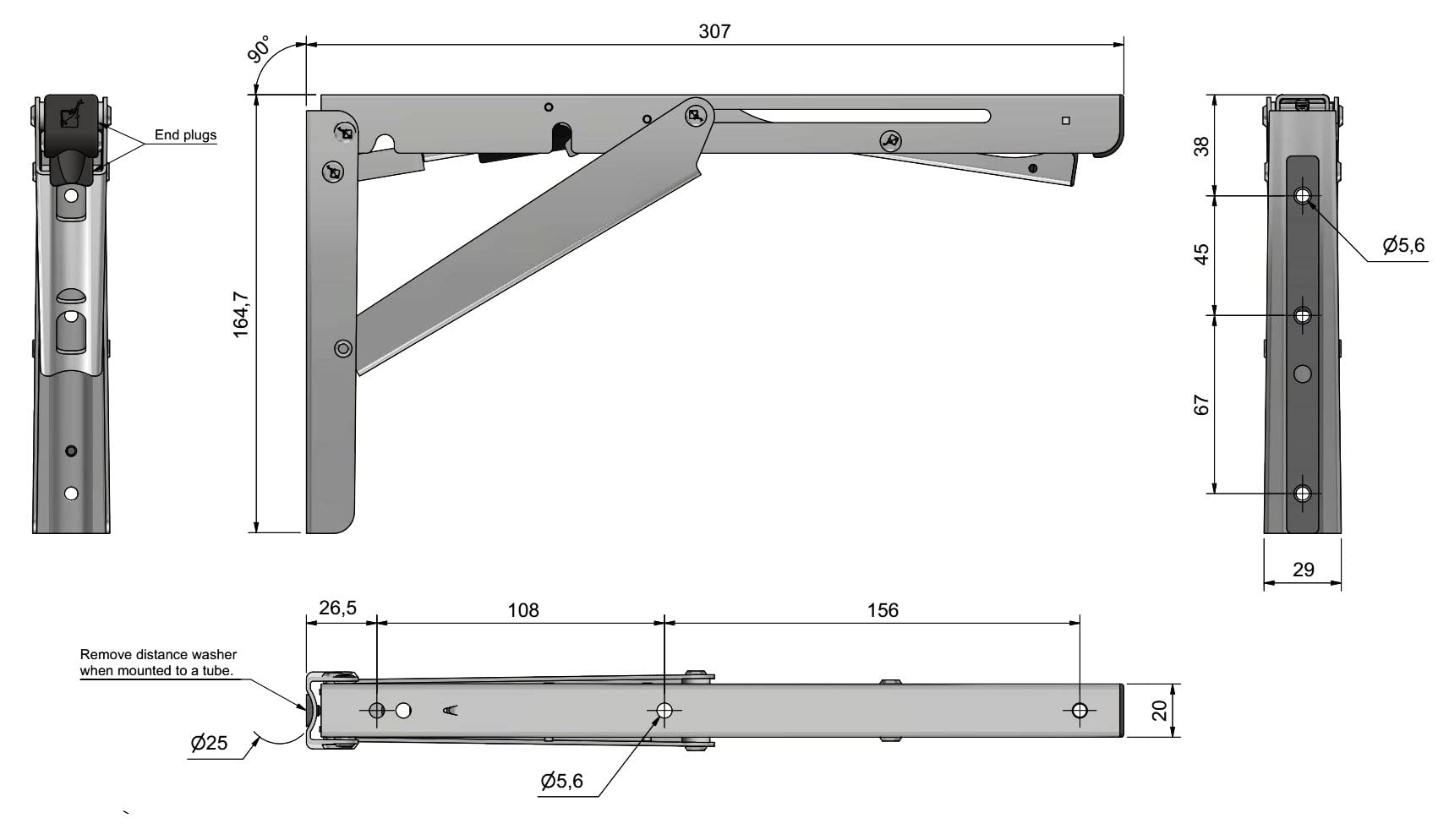

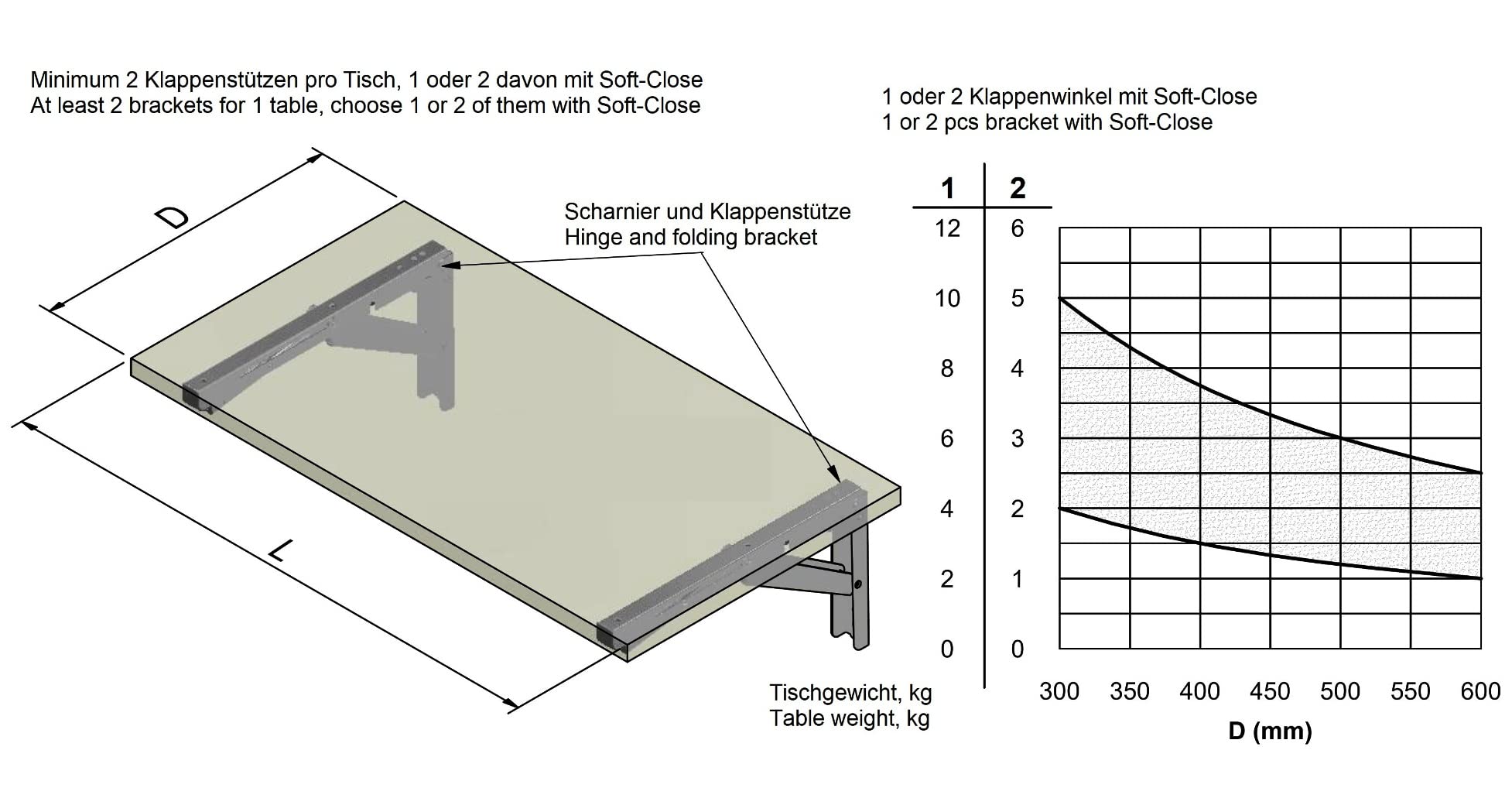

Please note the wall must be suitable for carrying the required load. The back panel of the folding angle is rounded, so that they can be mounted not only on straight surfaces, but also on tubes (diameter 25 mm). The picture shows when one and when two dampers are needed.

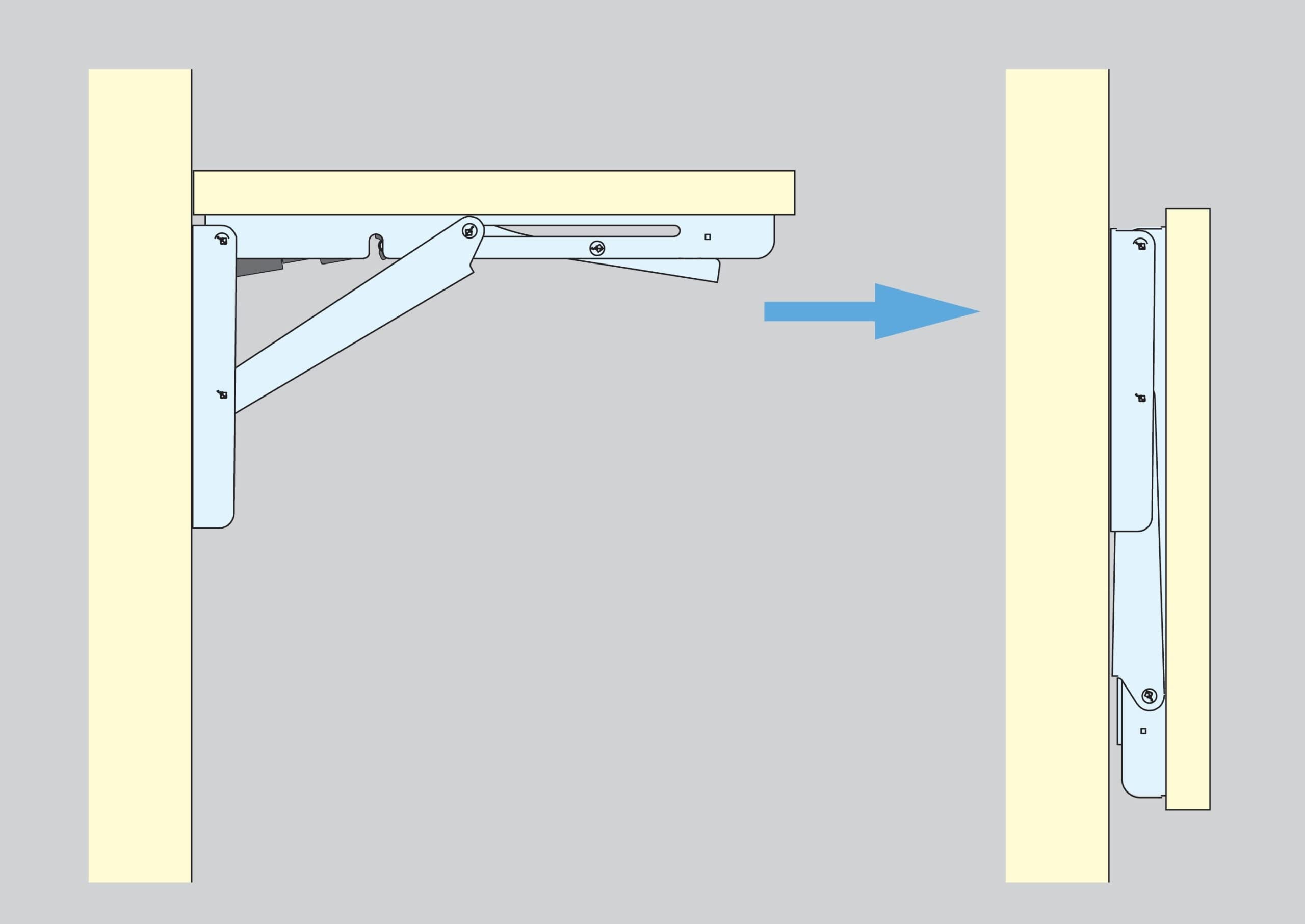

If the flap is narrow, the folding table holders can be mounted in reverse. In this case, the longer side is mounted on the wall and the shorter side is used for the folding table or shelf. This has no negative effect on the load (see picture).
